1BB06 MDP TO VGA M

Product Description

nT01BB06 MINI DP M TO VGA M CABLE

Mini DP M to VGA M cable helps to connect devices like Computer , processors , Laptops with Mini DP interface to Displays and projectors with VGA interface . Mini DP is the source and VGA is to display .The cable support and video signals . It supports resolution of 1920 X 1200 60Hz.Gold plated pins and Shell . The cable is made up of tin coated copper of 28 awg – it is double shielded to provide the best disturbance less signals . Colour Black / Greish Blue . Available Length 1.8 Application – Workstation , Gaming , designing , Control Room …

Specification

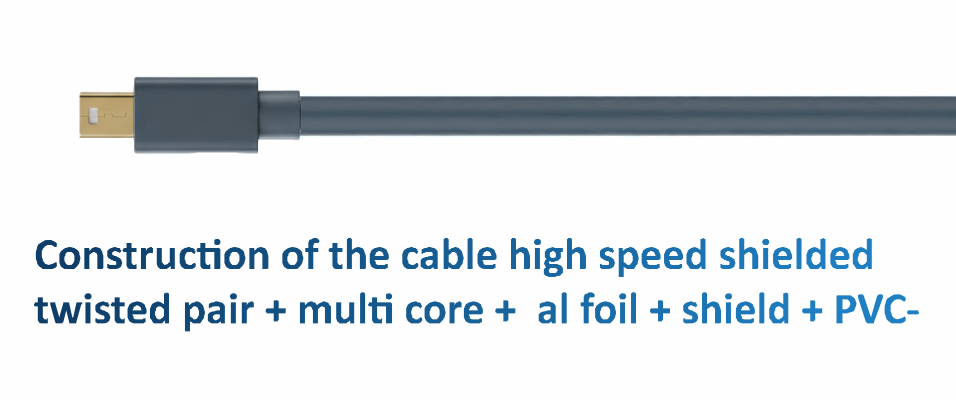

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-
* Mini DP M Connector Gold Plated Pins / Shell
* VGA M Gold Plated Pins / Shell
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* Resolutions 1920X1200 60 Hz .
* Supports video signals .
* Gauge 28 awg

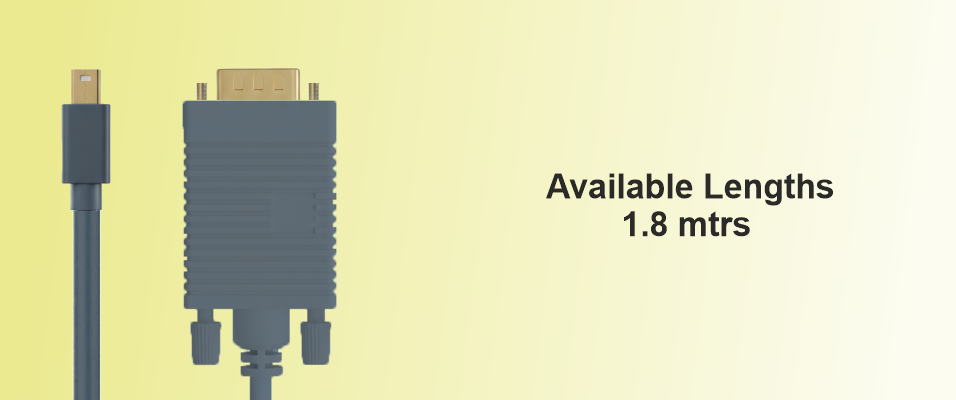

* Available Lengths – 1.8 mtrs

Connector A Mini DP M Connector
Housing Dual Moulding
Coating  Gold

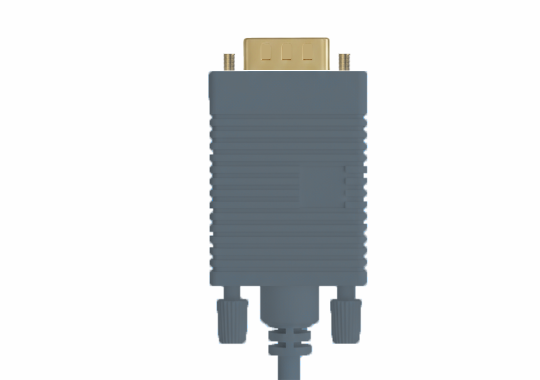

Connector B VGA M Connector
Housing Plastic Shell
Coating Gold
Cable High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Resolution 1920 X 1200 60 Hz
Supports  DPV 1.2
 Conductor Tinned Copper 28 AWG
Shield  90 % Tin Coated Copper
Colour Black / Blue
Length Available 1.8 mtrs
