1BB05 DP TO VGA M

Product Description

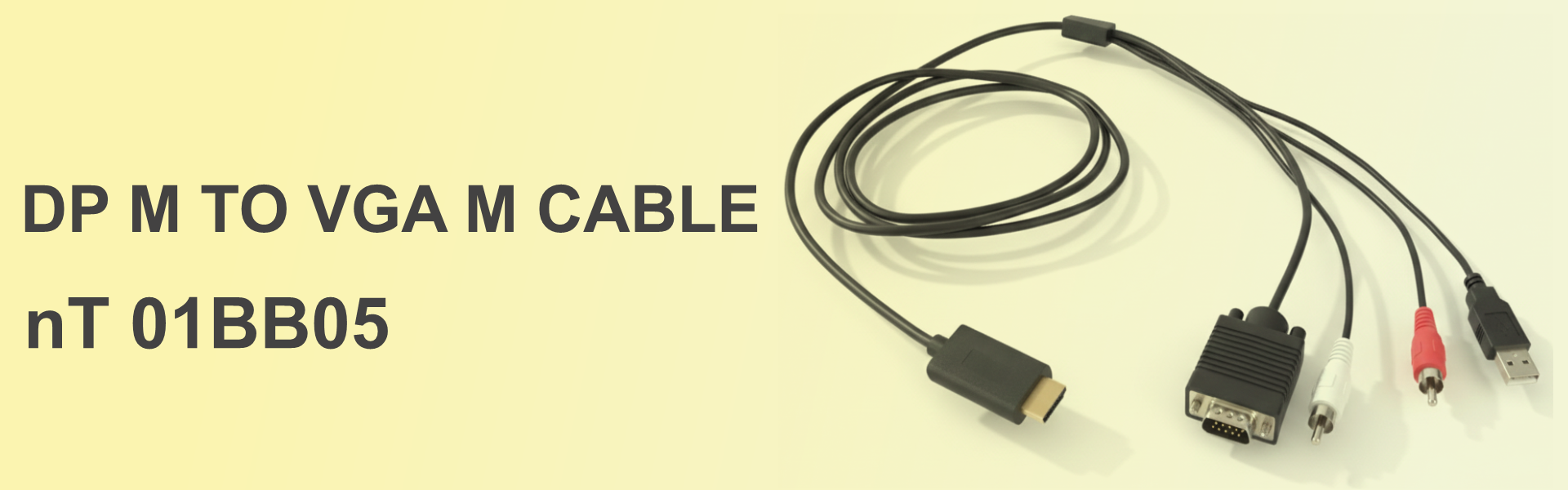

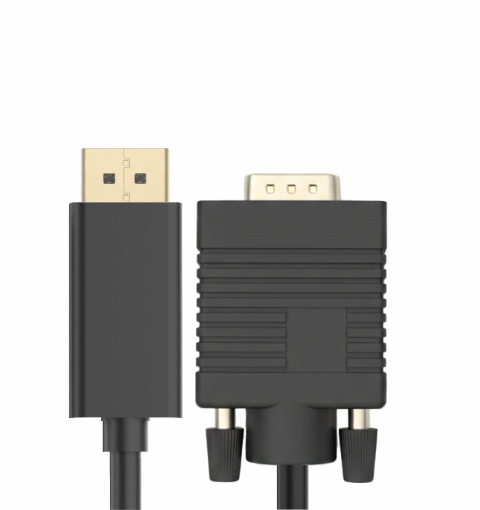

nT01BB05 DP M TO VGA M CABLE

DP M to VGA M cable helps to connect devices like Computer , processors , Laptops with DP interface to Displays and projectors with VGA interface . DP is the source and VGA is to display .The cable supports video signals . It supports resolution of 1920 X 1200 60Hz.Gold plated pins and Shell . The cable is made up of tin coated copper of 28 awg – it is double shielded to provide the best disturbance less signals . Colour Black / Grayish Blue . Available Length 1.8 Application – Workstation , Gaming , designing , Control Room …

Specification

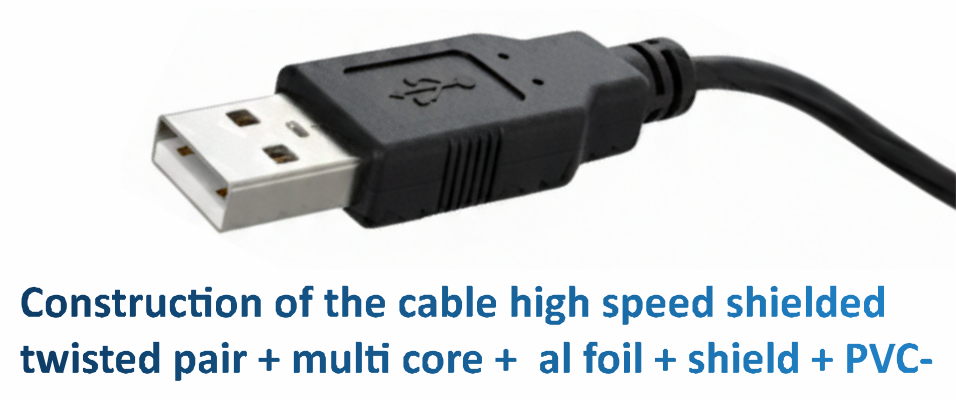

* Construction of the cable high speed shielded twisted pair + multi core + al foil + shield + PVC-
* DP M Locking Connector Gold Plated Pins / Shell

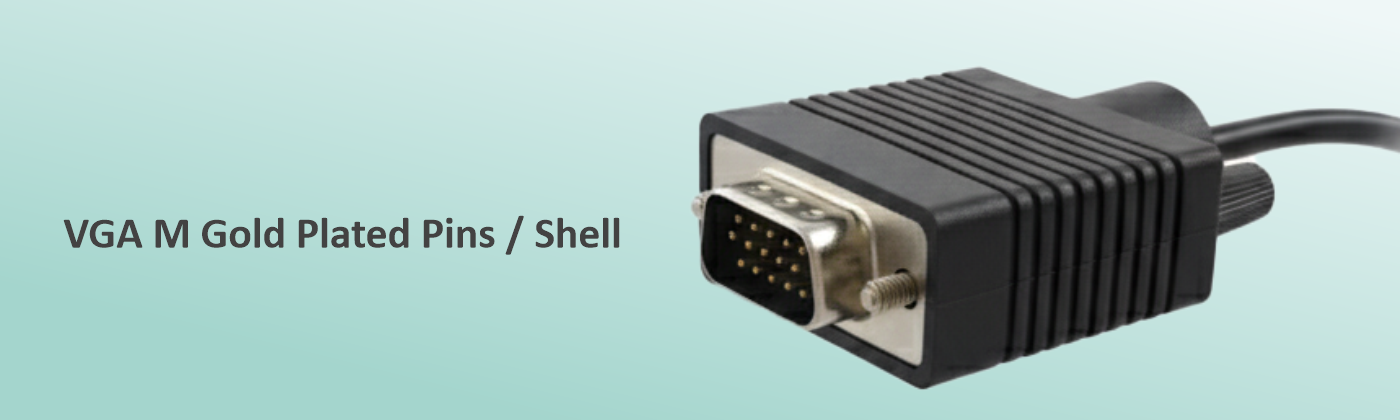

* VGA M Gold Plated Pins / Shell
* Dual Moulded for extra strength .
* Shell is grounded and connected to the shield on both the ends.
* Resolutions 1920X1200 60 Hz .
* Supports video signals .
* Gauge 28 awg

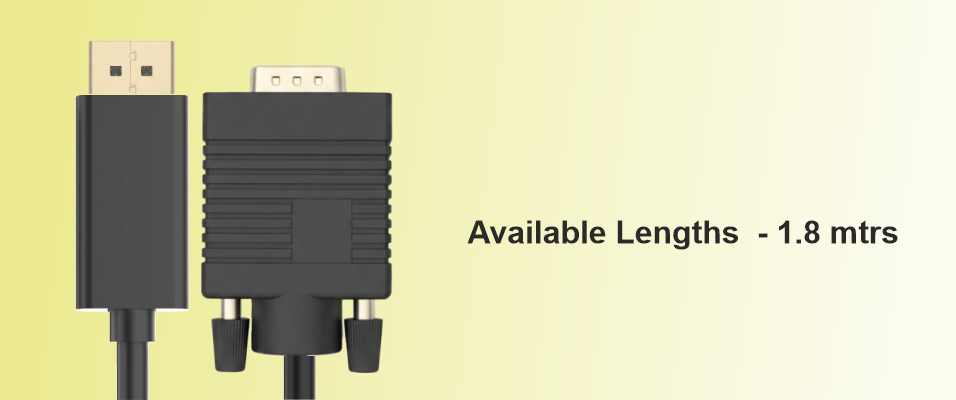

* Available Lengths – 1.8 mtrs

Connector A DP M Connector
Housing Dual Moulding
Coating  Gold
Connector B  VGA M Connector
Housing Plastic Shell
Coating Gold
Cable High Speed Shielded twisted pair + Multi core + al foil + shield+ pvc –
Resolution 1920 X 1200 60 Hz
Supports DPV 1.2
 Conductor Tinned Copper 28 AWG
Shield 90 % Tin Coated Copper
 Colour  Black / Blue
Length Available  1.8 mtrs
