nT01BA05 S.VIDEO CABLE ANALOG VIDEO CABLE

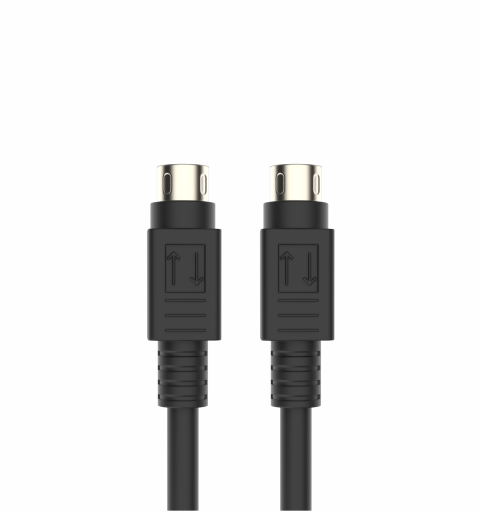

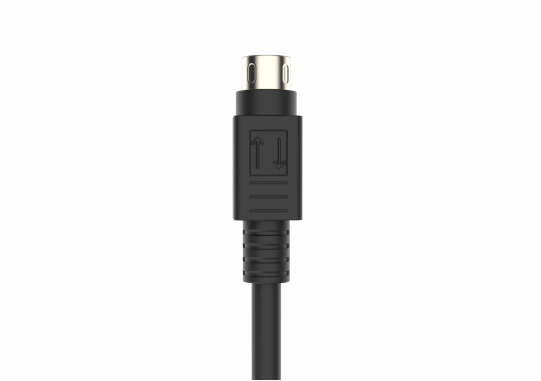

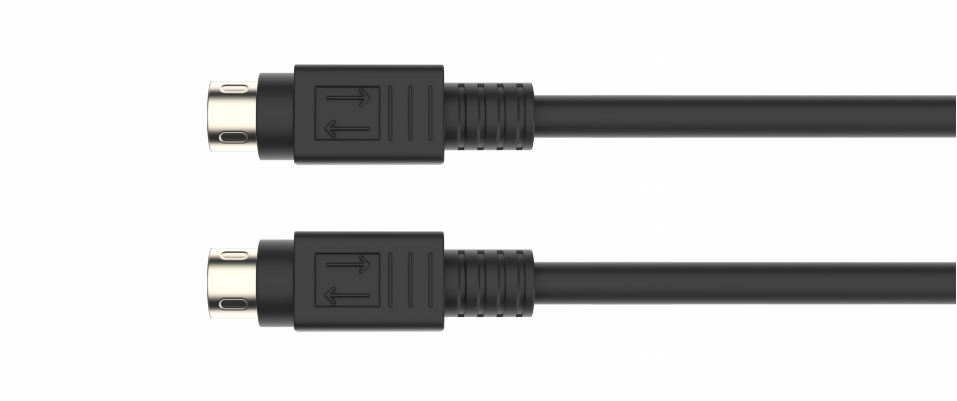

S.VIDEO cable analog video cable with 4 pin mini din male connectors on both ends . The connectors are gold plated with full shielding . The cable is constructed with 2 coax cables of 75 ohms each . The cable supports analog resolution up to 576i . Application – medical imaging , machine vision and av systems .
S.video 4 pin mini din male to 4 pin mini din male cable,
Flexible and rugged construction for long life,
Gold plated connectors,
Fully shielded cable and connectors,
Cable construction 2 coax cables of 75 ohms,
Resolution supported up to 576i,
Available from 1 mtr to 15 mtr lengths,
Available in orange colour and black moulding.
| CONNECTOR SIDE A | S VIDEO MINI DIN 4 P MALE |
|---|---|
| CONNECTOR SIDE B | S VIDEO MINI DIN 4 P MALE |
| RESOLUTION SUPPORTED | 576I |
| CONSTRUCTION | 2 COAX OF 75 OHMS |
| CABLE OD | 6MM |
| COLOUR OF CABLE | ORANGE |
| LENGTHS AVAILABLE | 1 MTR TO 15 MTRS |
