15BX02 HDMI AUDIO EXTRACTOR

Video Link

Product Description

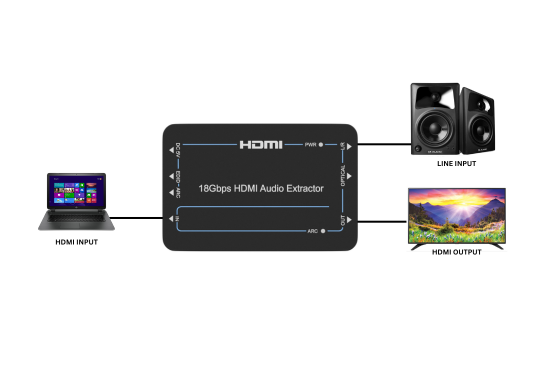

nT15BX02 18Gpbs HDMI Audio Extractor can extract audio signals from the HDMI source to output to A/V receivers via the Optical port and L/R analog audio port. The device also has a built-in HDMI output port which can connect to an ARC-compatible display and return the received audio to the amplifier or speaker via the optical port when the ARC is enabled. The input and output video resolution can reach up to 4K×2K@60Hz (YUV 4:4:4). The product supports smart EDID management, and both EDID and ARC functions can be controlled via DIP switches on the front panel.

Specification

HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
Support 18Gbps video bandwidth
Video resolution up to 4K2K@60Hz (YUV 4:4:4)
Support extracting audio from HDMI source device to multi
channel optical fiber (SPDIF) and L/R analog audio output

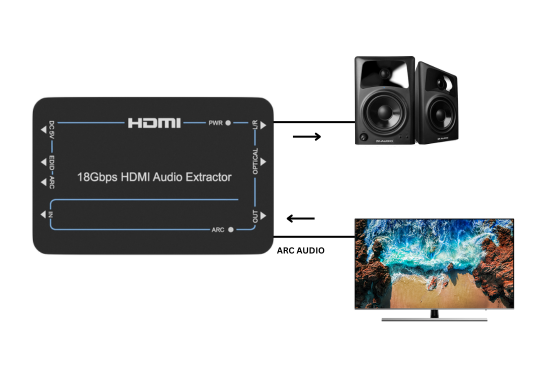

Support ARC function. when ARC is enabled, the audio will be
returned to the A/V receiver via the optical port
Supported optical audio formats: LPCM 2CH, Dolby Digital 2/
5.1CH, and DTS 2/5.1CH
Support HDMI high bit rate (HBR) audio pass through
Audio sampling rate up to 192KHz
1/7
Support HDR, HDR10, HDR10+, Dolby Vision and HLG
When ARC is enabled, CEC pass through is supported
Compact in size, easy to install



Input 1 HDMI
Output  1 HDMI , 1 Optical , 1 Stereo ,
Power Adapter 5 V / 1A , Compliance – HDMI 2.0 / HDCP 2.2 ,
HDMI Resolutions 4K 60Hz ,
Audio Hdmi – LPCM 7.1CH, Dolby TrueHD, and
DTS-HD Master
CEC Supported
ARC Supported
Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
