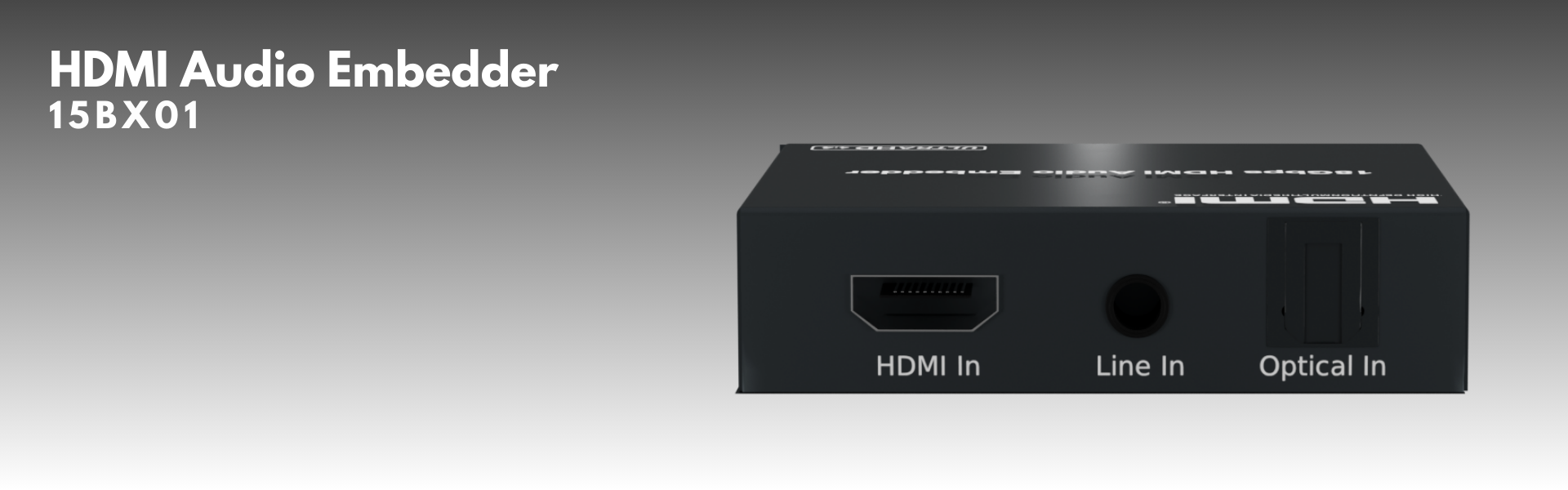

15BX01 HDMI AUDIO INJECTOR

Video Link

Product Description

nT15BX01 HDMI 18Gbps Audio Embedder could embed audio
signals from digital optical or analog stereo Line audio
to HDMI output. Further, both input and output HDMI
support video resolution up to 4K2K@50/60Hz (YUV444).
It supports 10bits HDR (High Dynamic Range) pass through
and HDMI high resolution digital audio formats bypass,
LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos
and DTS-HD Master Audio, audio sampling rate up to
192 kHz. HDCP 2.2 and CEC bypass are supported.

Specification

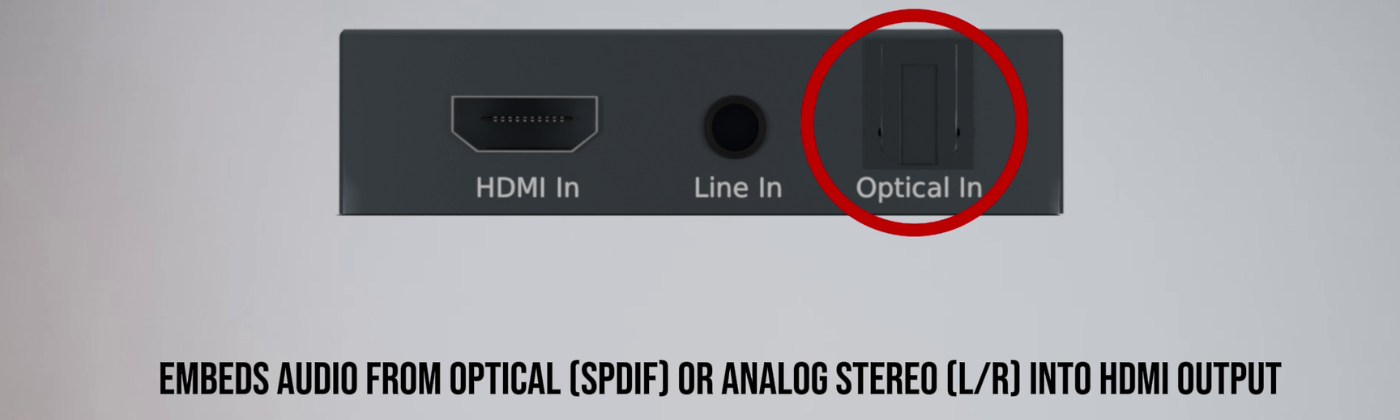

Embeds multi-channel optical (SPDIF) or Line analog
audio to HDMI output
Optical audio supports LPCM 2CH, Dobly Digital 2/
5.1CH, DTS 2/5.1CH
Analog audio supports PCM2.0
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Supports HDMI High Bit Rate(HBR) audio pass through
10bits HDR (High Dynamic Range) pass through
Supports CEC bypass

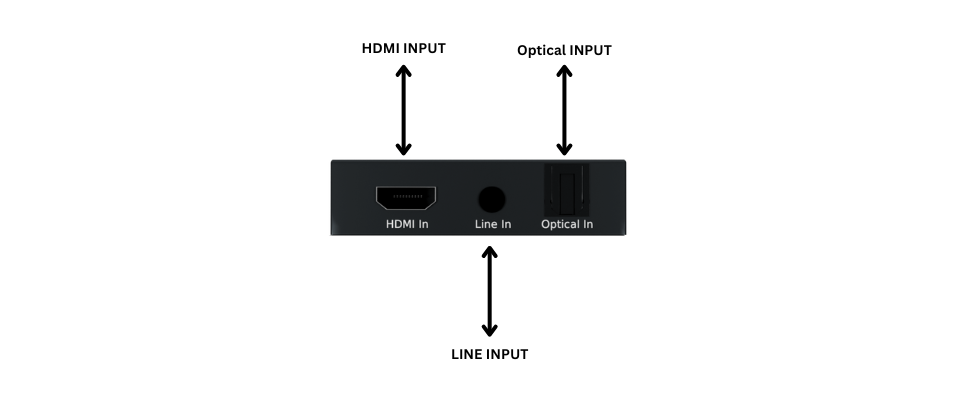

INPUT 1 HDMI 1 Stereo 1 Optical
OUTPUT 1 HDMI
Power Adapter 5 V / 1A , Compliance – HDMI 2.0 / HDCP 2.2 ,
HDMI Resolutions 4K 60Hz ,
Audio Hdmi – LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1,
Dolby Digital+, Dolby TrueHD, DTS-HD
Master Audio, Dolby Atmos, DTS:X
Audio Optical – LPCM 2CH, Dolby Digital 2/5.1CH,
DTS 2/5.1CH
L/R IN – LPCM 2CH
