13AX10 HDMI 4K30Hz 1:16

Video Link

Product Description

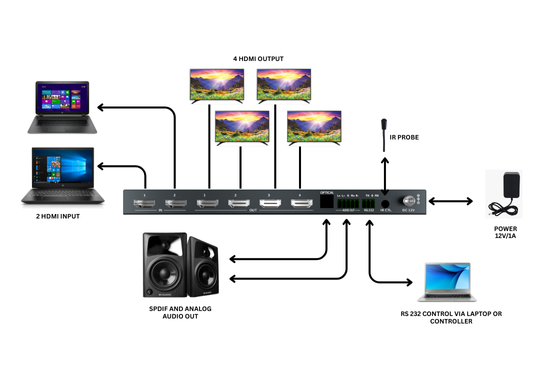

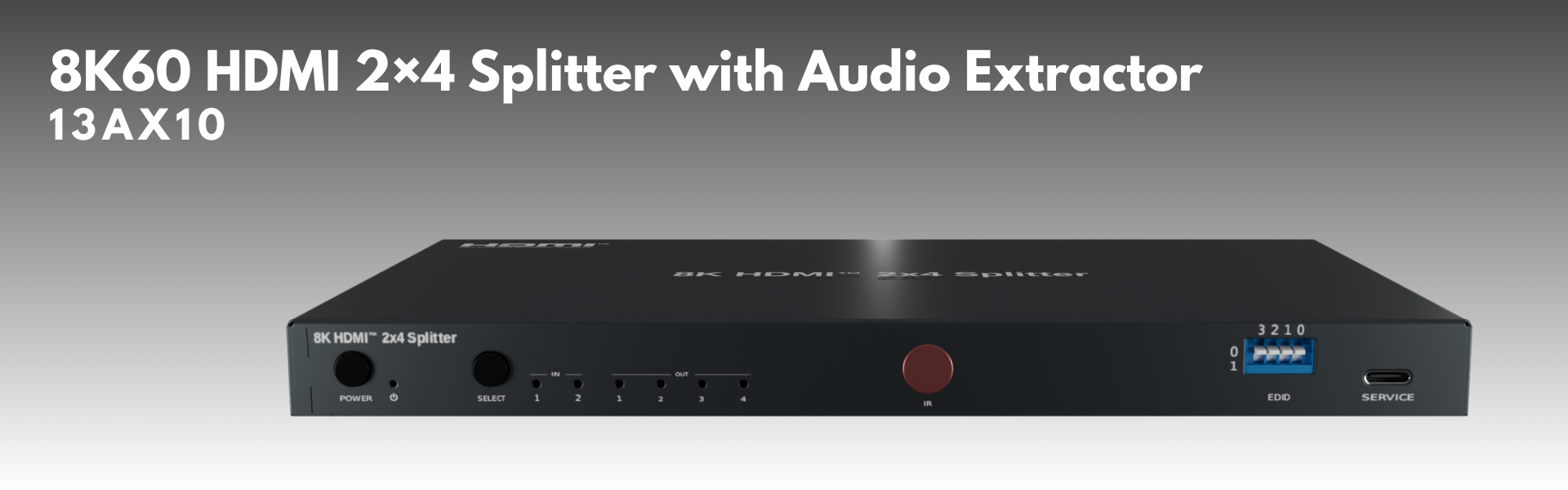

nT13AX10 2×4 splitter features 2 HDMI inputs switching and distributing to 4 HDMI outputs synchronously, with video resolution up to 8K@60 4:2:0 12bit. Each output port supports
8K->4K/2K downscaling and HDR to SDR conversion ndependently. Audio de-embedding is supported to digital optical audio and balanced/unbalanced analog audio with gain
adjustment. Auto or manual input switching and EDID management are also included. Built-in HDMI signal generator can easily diagnose the connection status of the external

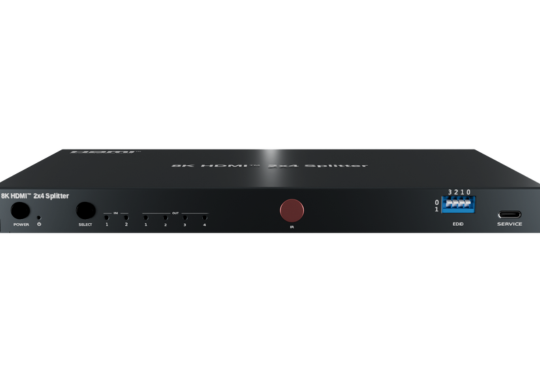

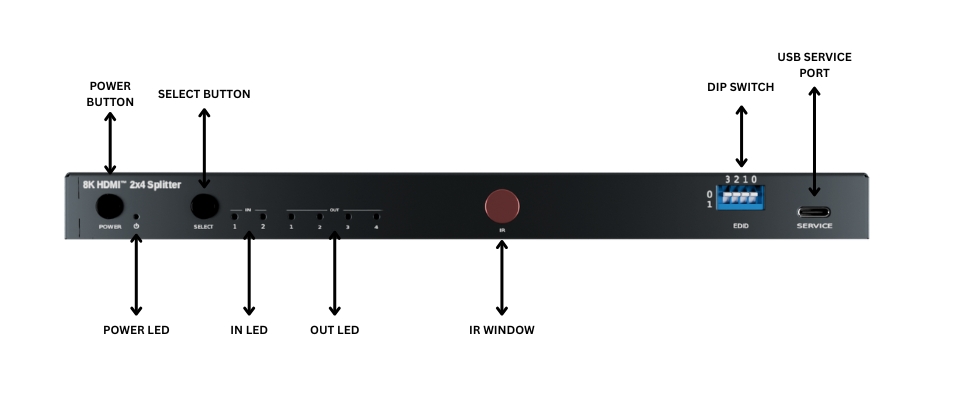

HDMI devices or cables. This product also can be controlled by front panel buttons, IR remote and API commands.

Specification

HDCP 2.3 compliant
Support 48Gbps video bandwidth
Support resolution up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit,
4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
Support HDR, HDR10, HDR10+, Dolby Vision, ALLM/VRR pass-through
Support 8K->4K/2K downscaling on each output for legacy display
Support HDR to SDR conversion on each output for legacy display
Support digital or analog audio de-embedding, and analog audio outputs with gain control
Switching methods – auto , front panel buttons, IR remote, API commands
? Built-in equalizer, retiming and driver
? Advanced EDID management

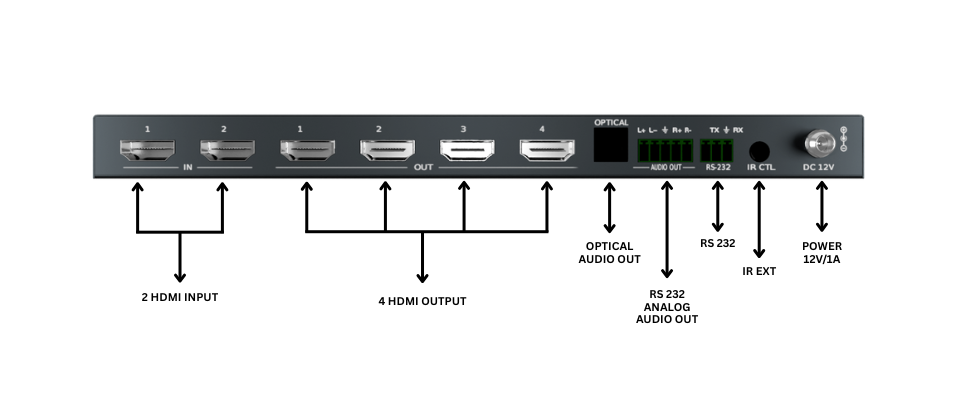

Input 2 HDMI
Output 4 HDMI ,1 optical ,2 stereo ,
Control Ports  RS232 / 1 IR ext / 1 service ,
Power Adapter 12 V / 1A , Compliance – HDMI 2.1 / HDCP 2.3 ,
HDMI Resolutions 8K 60Hz 4:2:0
Switching  Auto / Manual / RS232 / Remote
Audio Extraction Available
Audio Hdmi – LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Audio Optical – Up to LPCM/Dolby/DTS 5.1CH
L/R Out – LPCM 2CH

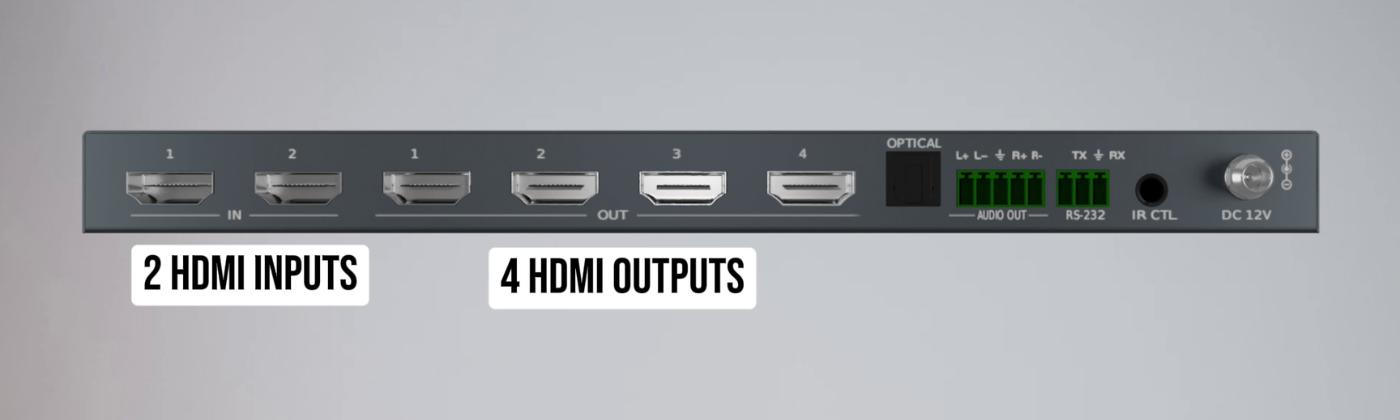

Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
